S9 Series Combines
S9 Series Combines
Highlights
- 390 bu Grain Bin Capacity
- Two-Stage Cleaning Process
- Low Loss Levels
- Reduced Compaction
- Simplified Serviceability
Class Size VI, VII, VIII | Rated Horsepower 322-430 HP | Maximum Boost 398-471 HP | Unload Rate 4.0 bu/sec | Weight 31,920 – 32,220 lb |

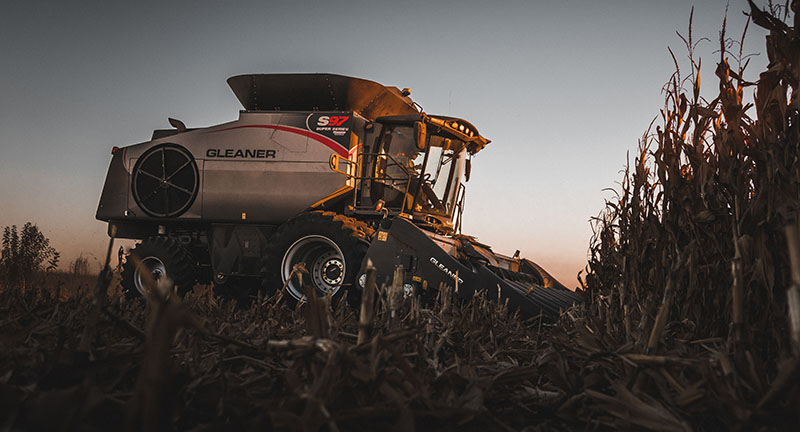

S9 Super Series Combine
Built Different
The S9 Series is the culmination of a century of unique design and performance. The Gleaner® combine design is fundamentally different, offering a level of harvesting performance unmatched by other combines. Building off the strongest attributes of our earlier models, the S9 Series adds even more harvesting performance, new technologies, increased comfort and ultimate convenience. This is a combine designed to propel your business forward.
Features
Vision Cab Operator Environment
Vision™ Cab features enough volume to provide the comfort you demand. Visibility is enhanced with a total glass area of 66 ft2 and the front glass area is maximized for unmatched visibility. Gleaner operators experience industry-leading comfort and convenience with ergonomic control placement and access.
Feederhouse Optimization
Unique Natural Flow™ process optimizes performance and improves feeding capacity in difficult crop conditions such as heavy canola swaths and green stem soybeans, where uneven feeding can occur. Compared to previous models, the feederhouse floor has been lowered by half an inch and the feederhouse runners and torque tube were raised an inch, resulting in better control of the crop and even feeding.
Automated Drives
S9 Series employs hydraulics for the propel drive and electronics for the gearshift and parking brake, eliminating all cables and linkage, providing total operator convenience.
Technology
Tyton Terminal
Vision Cab features our Tyton™ terminal with four quadrants, easy-to-read Gleaner-specific graphics and simplified navigation through the screens. The Tyton terminal is an intuitive yet powerful tool for making decisions to increase performance in real time.
Live Yield Mapping
Gleaner S9 Series features live yield mapping, providing improved access to farm data to make more informed business decisions, resulting in enhanced productivity and profitability. Gleaner offers two choices of yield monitoring hardware from the factory: AGCO FieldStar® Live or Ag Leader®.
Auto-Guide
S9 Series combines include our Auto-Guide™ guidance system as standard equipment, featuring a NovAtel satellite receiver that comes from the factory set up for WAAS. The system integrates Auto-Guide control into the Tyton terminal and eliminates the need for a separate screen in the cab. Additionally, a Trimble Auto-Guide option is available from the factory to accommodate customers already utilizing Trimble electronics on their operation.
SPECIFICATIONS
Model | Max Boost HP (kW) | SAE Rated HP (kW) | Engine | Transmission | Grain Bin Capacity | Unload Rate bu/sec (L/s) | Base Machine Weight with Tires lb (kg) |
S96 | 398 (296) | 322 (240.1) | AGCO POWER™ 8.4L twin-turbo, 6-cylinder | 4-speed electronically shifted w/ proportional hydrostatic | 390 (13,743) | 4.0 (141) | 32,620 (14,796) |
S97 | 451 (336) | 375 (279.6) | AGCO POWER 9.8L twin-turbo, 7-cylinder | 4-speed electronically shifted w/ proportional hydrostatic | 390 (13,743) | 4.0 (141) | 32,920 (14,932) |
S98 | 471 (351) | 430 (320.6) | AGCO POWER 9.8L twin-turbo, 7-cylinder | 4-speed electronically shifted w/ proportional hydrostatic | 390 (13,743) | 4.0 (141) | 32,920 (14,932) |
